Brand Name : | Grassland |
Model Number : | 100X6.3X16 |
Certification : | ISO 9001,ISO14001 and MPA EN 12413 |
Price : | US$0.25-0.3 |
Payment Terms : | T/T, L/C, Western Union, MoneyGram |
Supply Ability : | 300 thousand PCS PER day |
Delivery Time : | 30-60 Days |

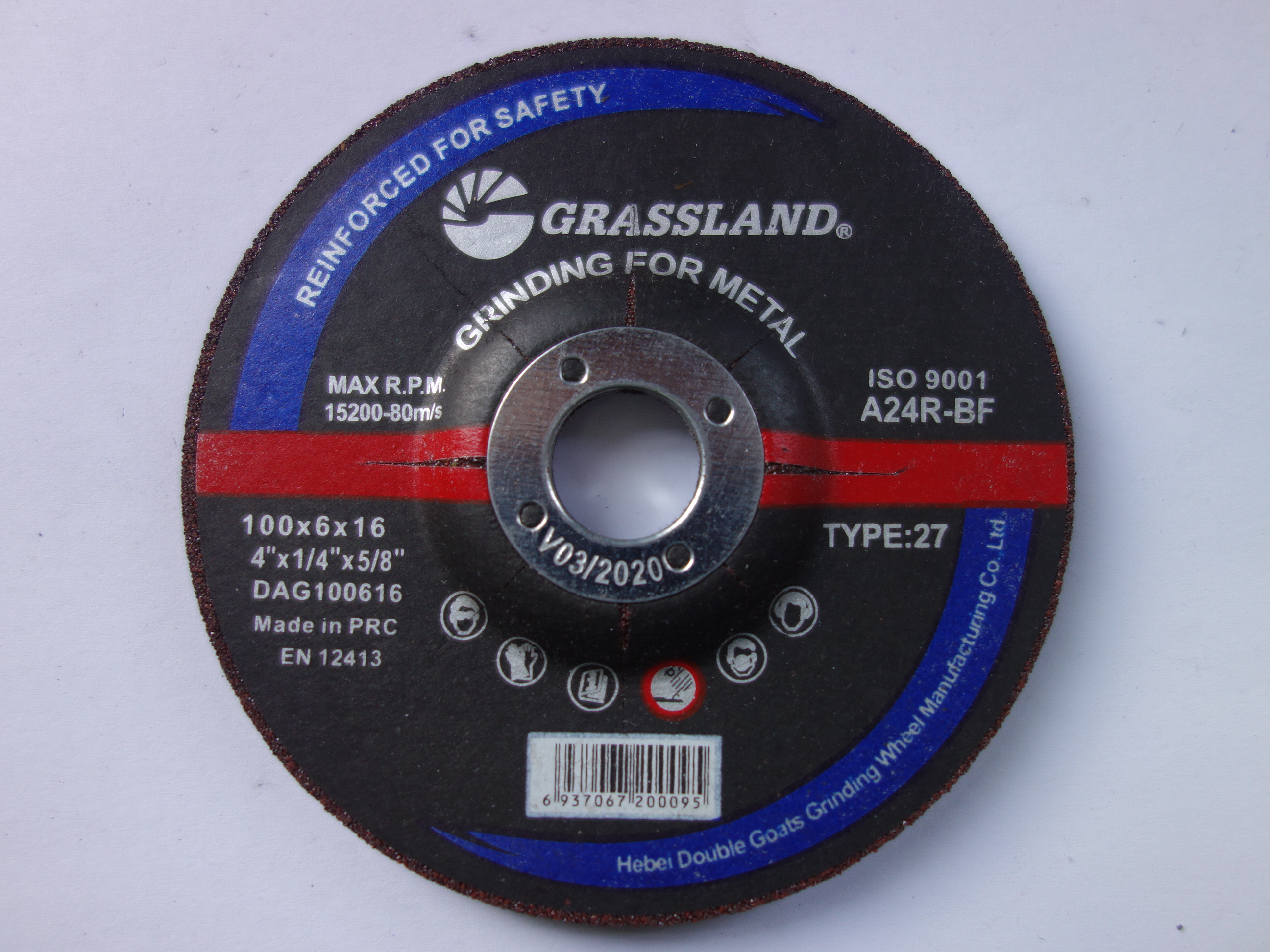

4" X 1/4" X 5/8" Abrasive Metal Grinding Wheel For Metal Grassland
Products Description--
Dimension: 4 in. x 1/4 in. x 5/8 in
Disc Diameter: 100mm (4″)
Bore Diameter: 16 mm (5/8″)
Disc Thickness: 6.0 mm
Disc Configuration: Type-27 – Depressed Centre
A24/30T-BF27
Safety Information
Maximum RPM: 15300 (80 m/s)
Complies with following standards:
EN 12413 – European Standard
GRASLAND Grinding Wheels are designed for grinding steel and stainless steel for added versatility. The innovative design produces less noise and vibration for an improved user experience and increased efficiency. The high strength bonding agent and high quality reinforcement provide improved efficiency and durability for the grinding wheels as well.For constructed with 3 fiberglass nets, made from multiple layers of long, stranded fiberglass are woven to form an exceptionally strong reinforcement layer specific to the application.
Features
Aggressive composition for faster material removal
Innovative design for reduced noise
Reduced vibration for superior user experience
High strength bonding agent for added durability and long life
24 abrasive grit for efficient material removal
R grade hardness is ideal for working with stainless steel and
universal metal
High quality reinforcement for improved performance through out the
life of the wheel
Application: Grinding Steelwork Dressing Welds and materials like material for metal, concrete, masonry, pipeline, asphalt, and stainless steel cutting
Cutting wheel information: | |||
Product Name | 4 in. x 1/4 in. x 5/8 in | Abrasive | Monocrystalline fused alumina |
Hardness | R Grade | Net Standard | Reinforced fiberglass |
Max working speed | 80 m/s | OEM Service | Acceptable |
R.P.M | 15300 | Package | Kraft Carton and Pallet |
Grit size | 24#,30#,46#, | HS Code | 68042210 |
Certificate | MPA EN12413,ISO9001 | Loading Port | Tianjin or else |
-Depressed center Inox grinding discs
Item Code | Dimension | Dimension | Speed | Standard |
(MM) | (Inch) | (r.p.m) | ||
DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/s |
DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/s |
DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/s |
DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/s |
DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/s |
DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/s |
DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/s |
DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/s |
DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/s |
DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/s |
DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/s |
Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
