Brand Name : | Grassland |
Model Number : | 180X6.0X22.2 |
Certification : | ISO 9001,ISO14001 and MPA EN 12413 |
Price : | US$0.6-0.75 |
Payment Terms : | T/T, L/C, Western Union, MoneyGram |
Supply Ability : | 300 thousand PCS PER day |
Delivery Time : | 30-60 Days |

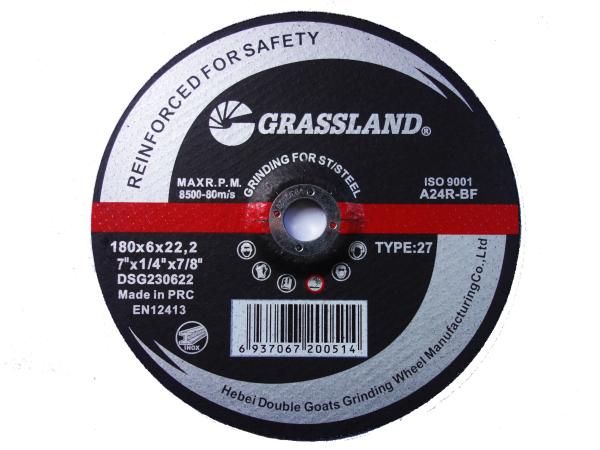

7inch Metal Grinding Wheel 180 x 6.3 x 22.23mm
Products Description--
Grassland abrasive wheel Manufactured with multiple layers of fiberglass, Bakelite resin and European Aluminum Oxide grain.
are durable bonded abrasive discs built for moderate to heavy grinding applications in more compact areas. Grinding Wheels offers most economic and efficient in grinding of all steels. Use of premium quality abrasives ensures rapid grinding action, cooler cutting and excellent finish of the range. Moreover, due to the self-dressing property of these abrasives, these wheels offer higher productivity..
Application: Grinding Steelwork Dressing Welds and materials like material for metal, concrete, masonry, pipeline, asphalt, and stainless steel cutting
Cutting wheel information: | |||
Product Name | 180X 6.0 X 22MM | Abrasive | Monocrystalline fused alumina |
Hardness | R Grade | Net Standard | Reinforced fiberglass |
Max working speed | 80 m/s | OEM Service | Acceptable |
R.P.M | 8500 | Package | Kraft Carton and Pallet |
Grit size | 24#,30#,46#, | HS Code | 68042210 |
Certificate | MPA EN12413,ISO9001 | Loading Port | Tianjin or else |
-Depressed center Inox grinding discs
Item Code | Dimension | Dimension | Speed | Standard |
(MM) | (Inch) | (r.p.m) | ||
DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/s |
DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/s |
DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/s |
DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/s |
DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/s |
DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/s |
DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/s |
DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/s |
DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/s |
DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/s |
DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/s |
Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
