Brand Name : | Grassland |
Model Number : | 100X6.0X16 |
Certification : | ISO 9001,ISO14001 and MPA EN 12413 |
Price : | US$0.4-0.49 |
Payment Terms : | T/T, L/C, Western Union, MoneyGram |
Supply Ability : | 300 thousand PCS PER day |
Delivery Time : | 30-60 Days |

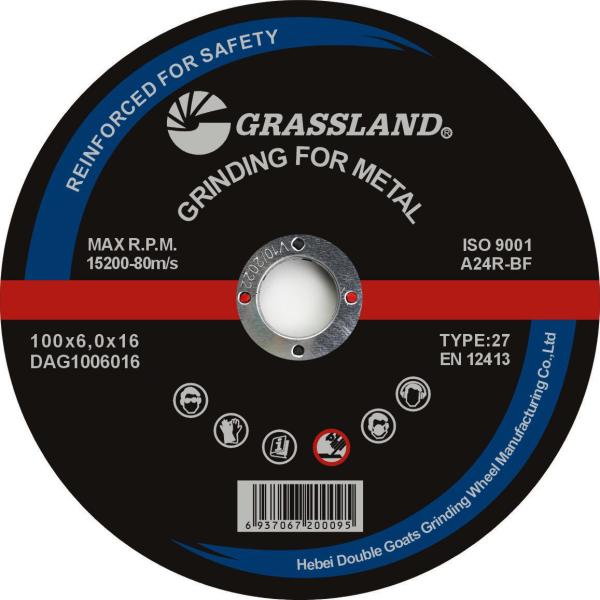

GRASSLAND 100x6x16 mm grinding wheel for Metal
Products Description--
Grassland abrasive wheel are durable bonded abrasive discs built for moderate to heavy grinding applications in more compact areas. GRASSLAND premium-grade wheels are constructed of high-quality material for metal, concrete, masonry, pipeline, asphalt, and stainless steel cutting. Easy-to-read labels are incorporated into the manufacturing process and therefore remain intact throughout the life of the wheel. Carefully formulated Reinold bonds are applied to meet the unique specifications of each wheel and multiple layers of long, stranded fiberglass are woven to form an exceptionally strong reinforcement layer specific to the application.
Application: Grinding Steelwork Dressing Welds
Cutting wheel information: | |||
Product Name | 100X 6.0 X 16MM | Abrasive | Monocrystalline fused alumina |
Hardness | R Grade | Net Standard | Reinforced fiberglass |
Max working speed | 80 m/s | OEM Service | Acceptable |
R.P.M | 15300 | Package | Kraft Carton and Pallet |
Grit size | 24#,30#,46#, | HS Code | 68042210 |
Certificate | MPA EN12413,ISO9001 | Loading Port | Tianjin or else |
-Depressed center Inox grinding discs
Item Code | Dimension | Dimension | Speed | Standard |
(MM) | (Inch) | (r.p.m) | ||
DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/s |
DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/s |
DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/s |
DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/s |
DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/s |
DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/s |
DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/s |
DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/s |
DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/s |
DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/s |
DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/s |
Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
