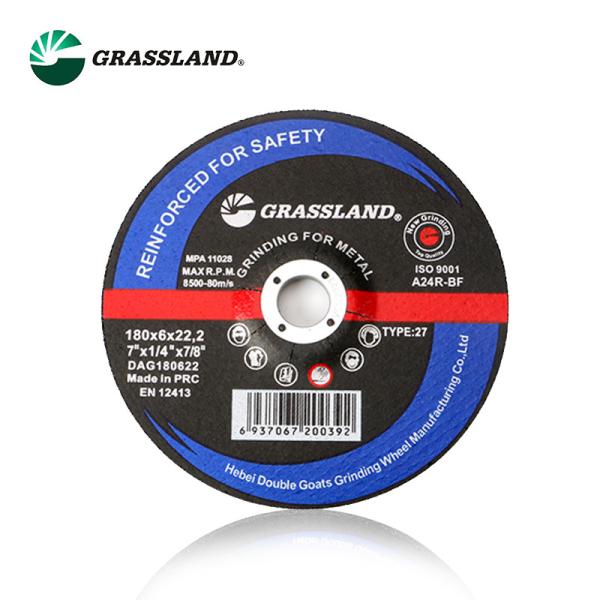

Depressed centerGrinding discs Wheel 7inch 180 X 6 X 22.23mm Grassland factory

Specifications,---

Grassland grinding disc PRO series designed especially for grinding common steel and stainless steel. Can also be used on tool steels, gray cast iron and its alloys.

blade diameter: 180 mm
thickness: 6.5 mm
bore diameter: 22.23 mm
composition: Corundum
quality: A30TBF
blade type: 27 - depressed
max. speed 8500 rpm

Grinding Wheels are 1/4 " thick, with 3 full diameter high tensile fiberglass reinforcements for maximum safety.tGrassland grinding and cutting discs comply with international standards and safety requirements such as EN12413.

Grassland grinding discs are manufactured using A24T premium aluminum oxide grains with R-grade hardness for longer life during more aggressive grinding. These grains are resin bonded over high tensile strength fiberglass mesh and balanced to avoid vibration during use.

Application

These 7 inch grinder discs apply on ferrous metals, steel, stainless steel, rebar, iron pipe, bar stock and metal tubing.

Widely used for tank fabrication, power plant maintenance and repair, welding/metal fabrications shops, these are available to our clients in different specifications to suit their specific application requirement.

T27 Grinding wheel for metal

T41-flat cutting and grinding discs

Related Details Show ----------------------------------------------------------

     Hebei Double Goats Grinding Wheel Manufacturing Co., Ltd was established in 1995,which is a professional company integration of research, production and marketing on resin bonded cutting and grinding wheel.

      The company has now become a large-scale private enterprise with total assets of RMB 150million (no including branch company)and about 300 employees (including 48 R & D and 102 above College diploma personnel). Company extended in 2010 which covers area of 58000 square meters and has a floor area of 29000 square meters. It has the leading production facilities in the industry in China. The number of press machines alone in the company is 76，including 33 sets automatic machines.DG is equipped with 52.5 meters production lines of fully computer-controlled heat-conductive oil circulated tunnel kiln. All its equipment is automatically controlled by intellectualized computers. It also has a full range of inspecting and measuring devices.

      The Company keeps introducing new formulas to meet different market requirements, developed SOR intensifier, KH series stabilizer, COMPD Elastomer Coating Technology and production lines of automatically intellectualized computers control successfully. Our independent research “high strength security resin bonded series grinding wheel”in 2005,which has passed the steady by National Quality Supervision & Inspection Center for Abrasives,every performance has surpassed the national standard,reached international advanced level.

     The company was the first in the industry to pass ISO 9001 、ISO14001、ISO18001 and German MPA Safety Certification.The series products have been honored as “Famous Product”by SMEHB in 2010,awarded “HebeiFamous Brand” in 2008 and “Hebei Famous Product”in 2011.

      With its development of 23 years, DG has accumulated a wealth of advanced experience in management of international marketing and capitalization operation. The company is working hard toward further opening up of overseas markets and speeding up of integration with the international market. It has set up branch office in Shanghai 、Dubai、.Uganda. Step by step, has a professional sales team of more than 100 persons in Dubai, the total assets overseas has reached more than 50 million. At present, more than 95% of DG's products are being exported to over 70 countries and regions in North America, Europe, Middle East and Africa. It has set up business relationship with a lot of multinational corporations and purchasing groups in the world, and the company's export business shows a prosperous picture and keeps increasing progressively.
