4in 100mm X 6.0mm X 16mm Bonded Abrasive Grinding Wheels For Metal

Hebei Double Goats Grinding Wheel Manufacturing Co., Ltd
Contact Now
    Buy cheap 4in 100mm X 6.0mm X 16mm Bonded Abrasive Grinding Wheels For Metal from wholesalers

    Buy cheap 4in 100mm X 6.0mm X 16mm Bonded Abrasive Grinding Wheels For Metal from wholesalers
    • Buy cheap 4in 100mm X 6.0mm X 16mm Bonded Abrasive Grinding Wheels For Metal from wholesalers

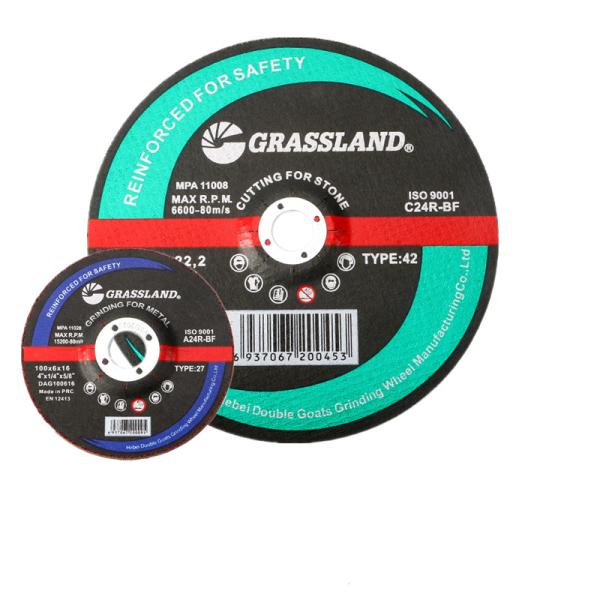

    4in 100mm X 6.0mm X 16mm Bonded Abrasive Grinding Wheels For Metal

    Ask Lasest Price
    Brand Name : Grassland
    Model Number : 100X6.0X16
    Certification : ISO 9001,ISO14001 and MPA EN12413
    Price : US$0.2-0.5
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 300 thousand PCS PER day
    Delivery Time : 30-60 Days
    • Product Details
    • Company Profile

    4in 100mm X 6.0mm X 16mm Bonded Abrasive Grinding Wheels For Metal

    4 in 100mm x 6.0mm x 16mm bonded abrasive grinding wheels for metal


    Specifications,---


    • Diameter: Ø 100 mm / 4 1/4"
    • Bore diameter: Ø 16mm / 5/8"
    • Thickness: 6.0 mm
    • Type 27 - Depressed Center
    • Bond = (BF) Reinforced Resinoid
    • Maximum circumferential speed: 80 m/s
    • Product type: Resin bonded Grinding wheel

    Grinding Wheels are 1/4 " thick, with 2 full diameter high tensile fiberglass reinforcements for maximum safety.

    Manufactured with a single 24 grit grain structure which allows uniform results at every angle . Additionally, these 4 inch grinding wheels boast a long life and are perfect for aggressive stock removal applications.


    Choose from many formulations specifically engineered for your application,at a 15-30-degree angle, Grassland grinding and cutting discs comply with international standards and safety requirements such as EN12413.100MM Grinding Wheels by Grassland abrasive wheel are durable bonded abrasive discs built for moderate to heavy grinding applications in more compact areas


    Application


    These 4” grinder discs are ideal for use on ferrous metals, steel, stainless steel, rebar, iron pipe, bar stock and metal tubing. The 4 inch grinding discs general uses include but are not limited to all-purpose grinding, rust removal, deburring, and removing weld splatter.


    Cutting wheel information:
    Product Name4inch Grinding wheelAbrasiveBrown Aluminum oxide and silicon carbide
    HardnessR GradeNet StandardReinforced fiberglass
    Max working speed

    80 m/s


    OEM ServiceAcceptable
    R.P.M15300Package

    Kraft Carton and Pallet


    Grit size24#,30#,HS Code68042210

    Certificate


    MPA EN12413,ISO9001


    Loading PortTianjin or else

    T27 Grinding wheel for metal


    Description of goodsItem NoSpecificationUnitPCS/CTNN.W./G.W.(KGS)CARTON SIZE(CM)
    Depressed grinding disc for metal 80m/sDAG1004016T27-100X4.0X16MMPC20014/1521*21*25
    DAG1006016T27-100X6.0X16MMPC20021/2235.7*22*22
    DAG1154022T27-115X4.0X22.2MMPC1009.5/10.524.5*24.5*14.2
    DAG1156022T27-115X6.0X22.2MMPC10015/1624.5*24.5*19.2
    DAG1157022T27-115X7.0X22.2MMPC10017.5/16.524.5*24.5*22.2
    DAG1158022T27-115X8.0X22.2MMPC10019.5/18.524.5*24.5*25.2
    DAG1254022T27-125X4.0X22.2MMPC10011.5/12.526.5*26.5*14.2
    DAG1256022T27-125X6.0X22.2MMPC10017.5/18.526.5*26.5*19.2
    DAG1804022T27-180X4.0X22.2MMPC6014.5/15.537.5*19*17.7
    DAG1806022T27-180X6.0X22.2MMPC6022/2337.5*25*19
    DAG1807022T27-180X7.0X22.2MMPC3011/1237.5*19*13.5
    DAG1808022T27-180X8.0X22.2MMPC6028/2937.5*19*29.7
    DAG2304022T27-230X4.0X22.2MMPC3010.5/11.524*24*17.7
    DAG2306022T27-230X6.0X22.2MMPC3018/1924*24*22.7
    DAG2307022T27-230X7.0X22.2MMPC3019/2024*24*26.7
    DAG2308022T27-230X8.0X22.2MMPC3021/2225*24.5*29.7

    T42-Grinding discs for metal


    Description of goodsItem NoSpecificationUnitPCS/CTNN.W./G.W.(KGS)CARTON SIZE(CM)
    Depressed Cutting disc for metal 80m/sDAC1002516T42-100X2.5X16MMPC2008/922*22*20.2
    DAC1152522T42-115X2.5X22.2MMPC20012/1324.5*24.5*20.2
    DAC1252522T42-125X2.5X22.2MMPC20014/1526.5*26.5*20.2
    DAC1502522T42-150X2.5X22.2MMPC15015/1634*26*17
    DAC1802522T42-180X2.5X22.2MMPC15019.5/20.540*20*26
    DAC2302522T42-230X2.5X22.2MMPC5011.5/12.524*24*20.7
    DAC2502522T42-250X2.5X22.2MMPC5011.5/12.525*25*19
    Depressed Cutting disc for metal 80m/sDAC1003216T42-100X3.2X16MMPC40021.5/20.522X22X19.7
    DAC1153222T42-115X3.2X22.2MMPC20014/1524.5*24.5*22.2
    DAC1253222T42-125X3.2X22.2MMPC20016/1726.5*26.5*22.2
    DAC1503222T42-150X3.2X22.2MMPC20025/2632*32*22.2
    DAC1803222T42-180X3.2X22.2MMPC10018/1937.5*19*23.7
    DAC2303222T42-230X3.2X22.2MMPC5014/1524*24*23.7
    DAC2503222T42-250X3.2X22.2MMPC5017.5/16.525*25*21
